CLICKSTAR

CLICKSTAR - Tactile Control, Total Compatibility Classic buttons, modern brains. CLICKSTAR is a powerful replacement for your Autostar 2 or 3 handset, with responsive tactile buttons, optional joystick control, and full app integration. Pair it with the FREE ScopeBits app for Android or iOS and enjoy wireless slewing, focus, and more - whether you're hands-on or hands-off.

A note to owners of the original CLICKSTAR, you can upgrade to the new CLICKSTAR shown on this page. Please visit the store to find out how.


Quickly jump to an information section using these buttons

CLICKSTAR unit overview

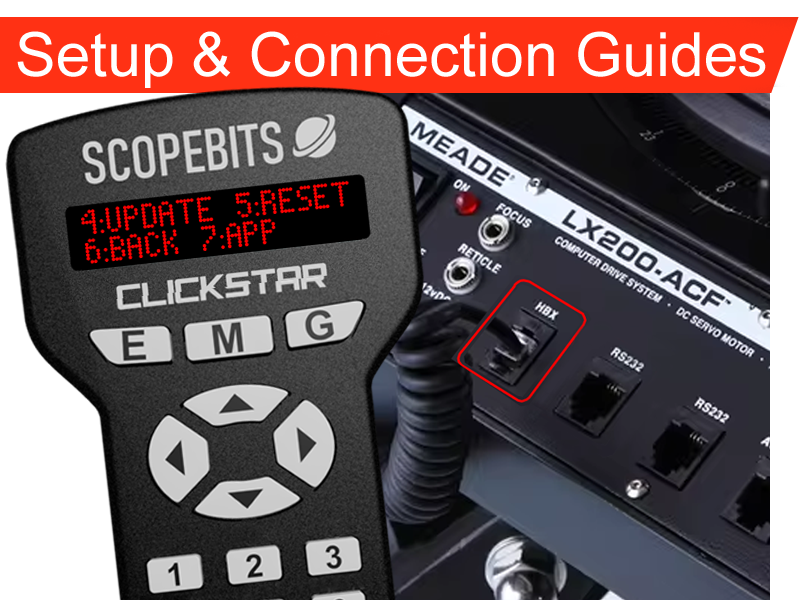

CLICKSTAR simply plugs into your mount's HBX port. Use the original lead, or the optional supplied one. It replicates your original MEADE Autostar 100%! Ready for LX200 ACF, LX200 GPS, LX200 R, LX400, LX600, LX850.

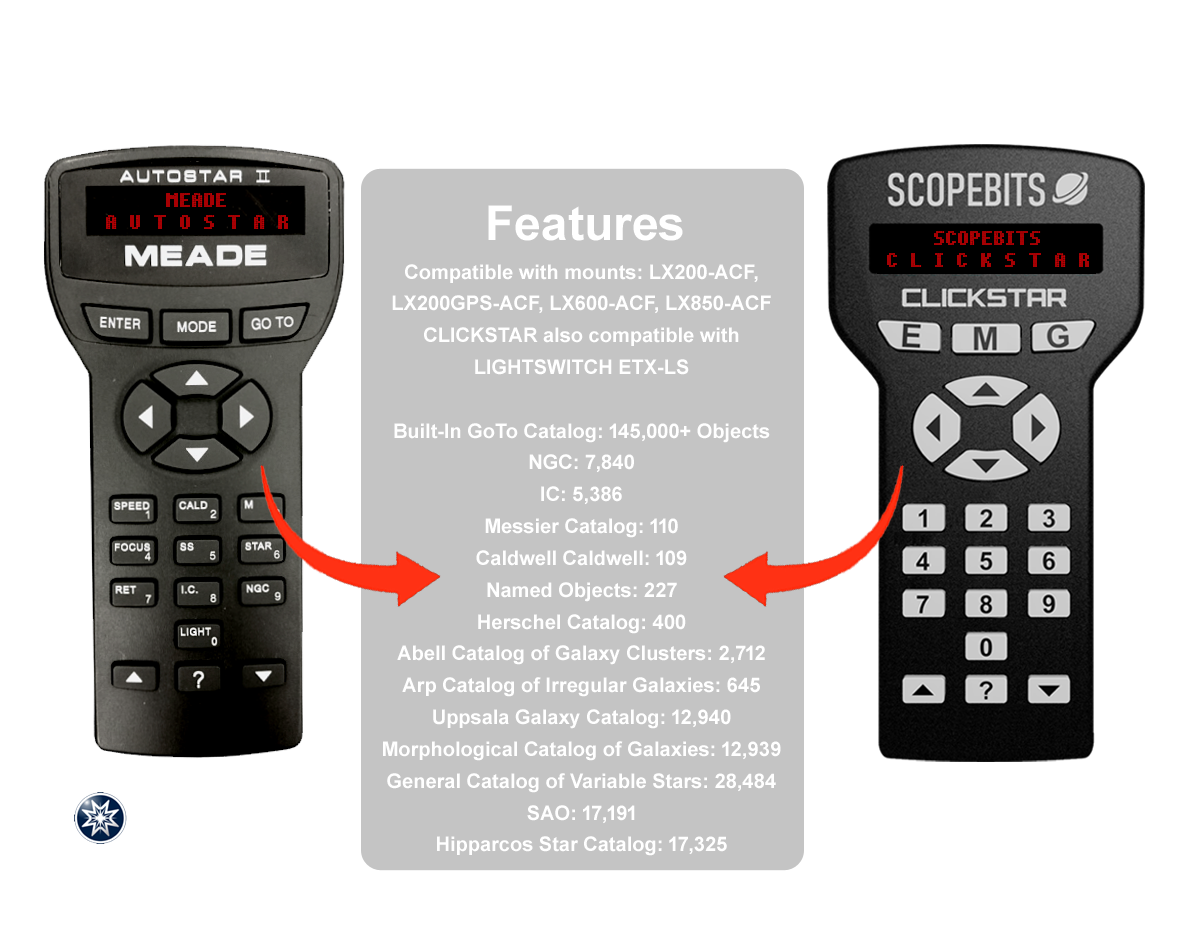

Features

Autostar 2 Compatible

    Built-In GoTo Catalog: 145,000+ Objects
    NGC: 7,840
    IC: 5,386
    Messier Catalog: 110
    Caldwell Catalog: 109
    Named Objects: 227
    Herschel Catalog: 400
    Abell Catalog of Galaxy Clusters: 2,712
    Arp Catalog of Irregular Galaxies: 645
    Uppsala Galaxy Catalog: 12,940
    Morphological Catalog of Galaxies: 12,939
    General Catalog of Variable Stars: 28,484
    SAO Catalog: 17,191
    Hipparcos Star Catalog: 17,325
    Display: 2-Line Backlit LCD

CLICKSTAR also features joystick control and APPSTAR phone handset capability!

Handset demo

Try CLICKSTAR right here. Press the keys on the picture: it's connected to a simulated telescope that's already aligned and pointing at Vega.

CLICKSTAR handset

On your LX200 the menus come from the telescope itself, so you'll see your own Autostar II firmware. The keys are labelled for both Autostar 2 and Autostar 3.

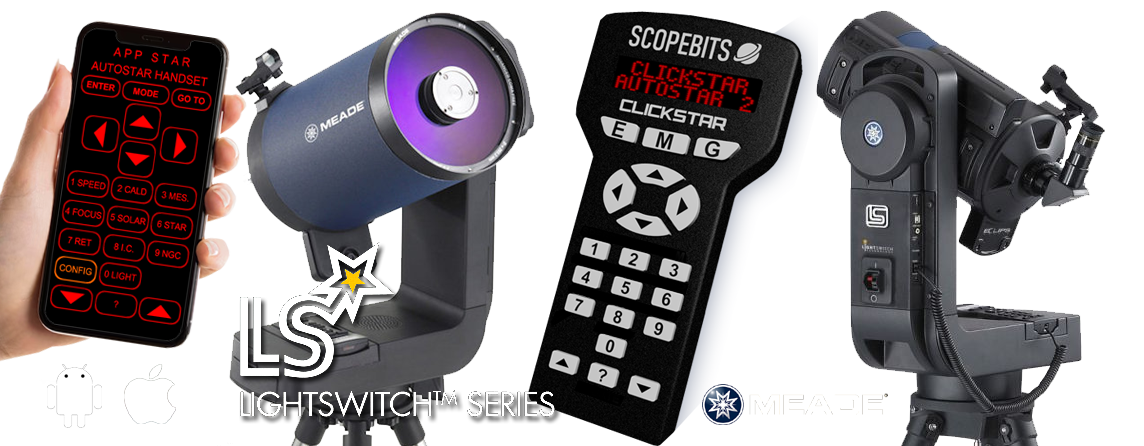

On your Lightswitch the menus come from the telescope itself, so you'll see your own Autostar III firmware.

Not all operations are available, and some are simulated for illustration. Planet positions are for demonstration only.

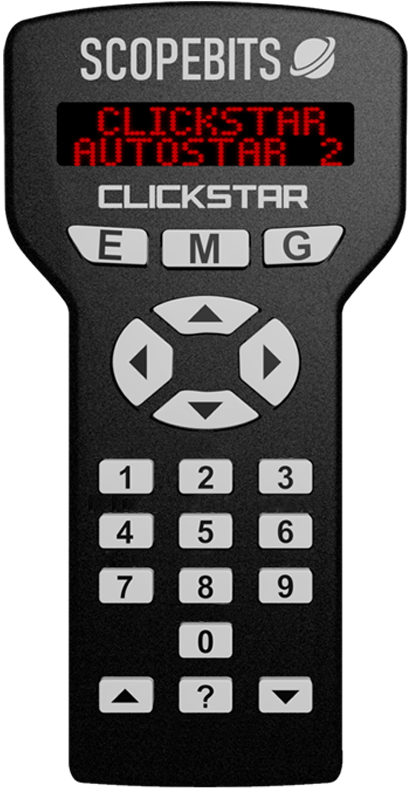

Keypad explained

Every key sends the same code as the matching key on your Autostar, so its menus, GOTOs and alignment work exactly as they always have. Tap a numbered marker to see what it does.
CLICKSTAR handset

The display

A bright two-line backlit display showing exactly what your Autostar shows: menus, coordinates, the cursor when you type numbers, and long descriptions that scroll across. Fine-tune the contrast from the back (see screen contrast).

ENTER, MODE, GOTO

The same as the real keys. Hold MODE for about two seconds to open the status screens (RA/Dec, Alt/Az, time, site).

ENTER, BACK, GOTO

The same as the real keys. Hold BACK for about two seconds to open the status screens (RA/Dec, Alt/Az, time, site).

Slew arrows

Big, tactile arrow keys you can find in the dark. Press and hold to move the telescope, let go to stop. The number keys set how fast it moves.

Number keys

Slew speed, number entry and the Autostar 2 shortcuts: SPEED, CALD, MES., FOCUS, PLANET, STAR, RET., I.C, and NGC.

Number keys

Slew speed, number entry and the Autostar 3 shortcuts: SPEED, CALD, MES., FOCUS, PLANET, STAR, VOL., TOURS, DISP, and 0 for MODE.

CONFIG

CLICKSTAR's own key, never sent to the telescope. Hold it for two seconds to open the settings menu: the phone apps, Wi-Fi setup, updates and Wi-Fi reset.

? (star)

Also CLICKSTAR's own key, so pressing it never changes anything on the telescope. In the settings menu it leaves the menu, just like 2.

Scroll keys and ?

? and ? scroll through menus and lists. ? gives help on whatever is on the display (MEDIA on Autostar 3).

Scroll keys and MEDIA

? and ? scroll through menus and lists. MEDIA (the ? key) works just as on the Autostar 3 handset.


Joystick control

Plug in the optional joystick for one-handed control. It can be plugged in or out at any time, and CLICKSTAR beeps when it connects. Its moves are sent to the telescope as key presses, so they show on the display (and on your phone) like any other key.
The joystick and what it does

Point at a card to see the move.

Slew

Push the stick up, down, left or right to move the telescope. Let go and it stops.

C

Slew speed

Hold the C button and push the stick up for a faster slew speed, or down for slower. Let go of C to set it.

Z

Focus

Hold the Z button for your Autostar's focus control (with a Meade electric focuser fitted): push the stick up or down to focus in or out, and left (fine) or right (fast) to change the focus speed. Let go of Z to go back to slewing.


APPSTAR phone apps

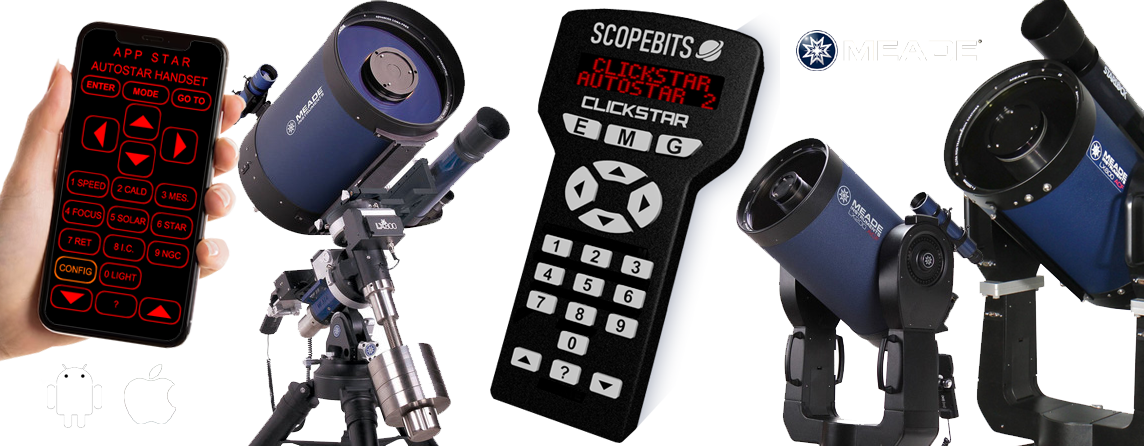

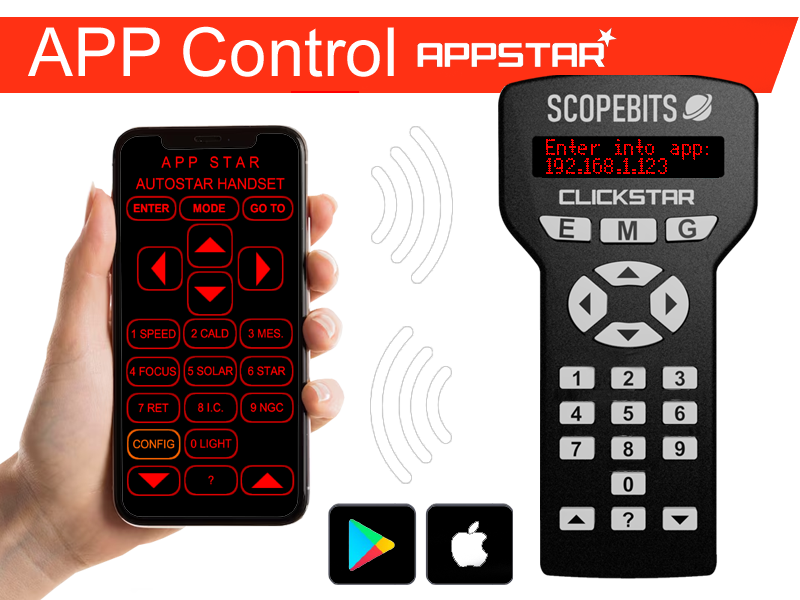

CLICKSTAR has APPSTAR built in: use your phone, tablet or computer as a handset, alongside CLICKSTAR. Choose how to connect, and try the real app on the phone below.

Works in any browser, including Safari on iPhone and iPad, with nothing to install. CLICKSTAR makes its own Wi-Fi network and serves the handset page itself, so it works at a dark site with no internet or mobile signal.

  1. Open the settings menu

    Hold CONFIG for two seconds. CLICKSTAR plays a short tune. On the original CLICKSTAR, hold ? instead.

  2. Press 6 for APPSTAR

    Choose which phone app to use.

  3. Press 8 for Wi-Fi

    CLICKSTAR starts its own Wi-Fi network, called APPSTAR.

  4. Join APPSTAR, open 192.168.4.1

    On your phone, join the Wi-Fi network APPSTAR (no password), then open http://192.168.4.1 in your browser. If your phone warns that the network has no internet, choose to stay connected.

    Tip: "Add to Home Screen" gives you an APPSTAR icon that opens full screen.

  5. Connected

    The handset appears on your phone with the same display as CLICKSTAR, and CLICKSTAR's own display goes back to your Autostar. Use either, or both: CLICKSTAR's keys and joystick still work.

CLICKSTAR's Bluetooth is ready whenever it's running, so your phone can stay on your home Wi-Fi or mobile data. The Bluetooth app adds Speak Display and game controller support.

  1. Open the app

    Open www.scopebits.co.uk/APP/WEBAPP in Google Chrome, with Bluetooth on. On a computer, use Chrome or Microsoft Edge on one with Bluetooth.

    Safari can't use Bluetooth, so install the free BlueFy browser, open it and type www.scopebits.co.uk/APP/WEBAPP into it.

  2. Choose your handset

    The first time, pick your handset layout (Autostar 2 or 3) and whether to Speak Display, then press OK.

  3. Press LINK and pair

    Press LINK (bottom right), choose APPSTAR in the popup and press Pair. You'll hear a tone when it's connected.

    Press LINK (bottom right), then tap APPSTAR when BlueFy shows Select device. You'll hear a tone when it's connected.

  4. Back from Wi-Fi?

    If you've been using Wi-Fi, switch back with CONFIG, 6, then 7. CLICKSTAR shows this reminder.

The phone runs the real APPSTAR app, connected to a simulated telescope. Not all operations are available, and some are simulated for illustration.


Settings menu

Hold the CONFIG key for two seconds to open CLICKSTAR's settings menu (the ? key on the original CLICKSTAR). You can practise every step in the handset demo above.

Good to know

A few handy things about using CLICKSTAR.

Your Autostar, unchanged

CLICKSTAR plugs into the HBX port. The menus, catalogues and alignment all come from your telescope, so everything works exactly as before.

Leaving the settings menu

Press 2 or ?. CLICKSTAR shows "Cancelled..."; press MODE to carry on where you were.

Handset and phone together

Use CLICKSTAR, the joystick and the phone app at the same time. Every key shows on both displays.

Safe slewing

If the Wi-Fi page loses its connection while you hold an arrow on it, CLICKSTAR lets go of the key so the telescope stops.

Original CLICKSTAR

Hold ? rather than CONFIG to open the settings menu. The other settings steps are the same.

Optional joystick

Add the optional joystick for one-handed slewing in the dark. Plug it in or out at any time; CLICKSTAR beeps when it connects. Hold C to change the slew speed and Z for focus. See joystick control, or find it in the store.


How to update the firmware

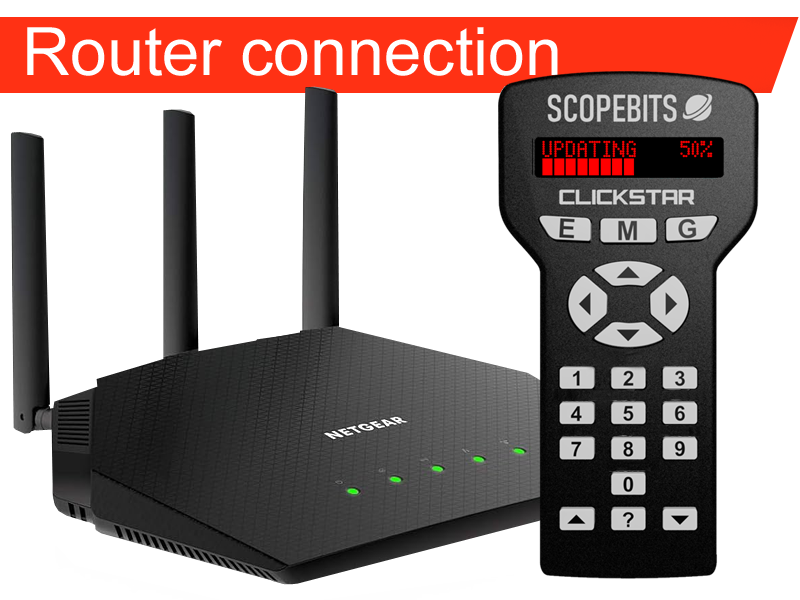

There are 2 ways to update your CLICKSTAR, one via the device using Wifi, or via this website USB updater. Below are guides for each method.


Adjusting the screen contrast

On the back of your CLICKSTAR, there's a small hole at the top. Use a mini Phillips (star) screwdriver to gently fine-tune the contrast of the LCD.


Reset CLICKSTAR

On the back of your CLICKSTAR, there's a small hole on the back near the USB-C input. Use a paper clip or similar small object to reset and restart your CLICKSTAR.


3D print files

Listed here are the 3D print files available for this product.

These are available in the store, but if you have the facility to 3D print them here they are.

Right click and "Save As"

3D printable STL for the bracket

Use a high quality PLA, ABS or PetG. 5% infill. This is a multi-use bracket and can be fit onto the LX200 handles, or used with the leg adapters below. LS users will have to use the tripod leg adapters. The bracket also can hold the joystick.

3D printable STL for the 2" tube leg adapter

Use a high quality PLA, ABS or PetG. 5% infill. To be used with the bracket above.

3D printable STL for the 1.5" tube leg adapter

Use a high quality PLA, ABS or PetG. 5% infill. To be used with the bracket above.

PDF files

Listed here are the PDF files available for this product.

PDF bracket instructions

How to install the bracket to the LX200 handles.


FAQ

Here are some of the frequently asked questions.

Check these as they may answer any support questions
Yes CLICKSTAR is a 100% plug in replacement for your Autostar 2 or 3 handset.
CLICKSTAR works with any mount that uses the Meade Autostar 2 eg LX200 ACF, LX200 GPS, LX200 R, LX400, LX600, LX850. Also the Autostar 3 used on the Lightswitch platform. See this guide.
CLICKSTAR simply plugs into the existing HBX port on your mount.
This is a purely personal choice. The support was added because it makes slewing effortless compared to trying to find handset buttons in the dark. Some mounts also allow focus control from the joystick. See this guide.
In the event that you accidentally entered incorrect info when connecting to a router, or if CLICKSTAR can't join a pre-existing network it may appear to hang. It will eventually timeout and return to normal operation. However you can always do a speedy reset. See this guide.
Yes. CLICKSTAR has APPSTAR built in, so your phone, tablet or computer can show the handset and control the telescope, alongside CLICKSTAR itself. Use Wi-Fi (any browser, nothing to install) or Bluetooth (the APPSTAR web app). See the phone app guides.
Two. For the phone app, CLICKSTAR creates its own Wi-Fi network called APPSTAR and serves the handset page itself at 192.168.4.1, so no router, internet or mobile data is needed (hold CONFIG, press 6, then 8). For firmware updates, CLICKSTAR can also join your home Wi-Fi (see Wi-Fi setup).
Not for Wi-Fi: join the APPSTAR network and open 192.168.4.1 in any browser, including Safari on iPhone and iPad. For Bluetooth, open www.scopebits.co.uk/APP/WEBAPP in Google Chrome (Android or desktop), or in the free BlueFy browser on iPhone and iPad.
Yes, but Safari cannot use Bluetooth, so you need the free BlueFy browser. Or use Wi-Fi instead, which works in Safari with nothing to install. See the phone app guides.
No, that is expected. If your phone asks whether to stay connected to a network with no internet, choose to stay connected. The handset page keeps working, and your phone can still use mobile data for everything else.
CLICKSTAR has a fairly low power Wifi antenna, so the range is about 10m in AP mode. As you will be at or near your scope this is rarely an issue. When it joins your home Wi-Fi for updates, the range depends on your router.
Press 2 or ?. CLICKSTAR shows "Cancelled... Mode to resume"; press MODE to carry on where you were. You can practise the settings menu in the handset demo.
Yes. The handset demo on this page works like the real thing, connected to a simulated telescope that is already aligned, including the joystick and the settings menu.
No additional power supply is required. CLICKSTAR is powered through the telescope handset connection. Ensure if running on batteries that they are fresh. Low batteries can cause the CLICKSTAR to not start.
Yes. Firmware updates can be installed through the ScopeBits firmware update tools available on the support website. Updating firmware ensures the latest features and compatibility improvements. CLICKSTAR also has OTA (Over The Air) updates if connected to a Wifi router. Make sure you're using Google Chrome or Microsoft Edge on desktop. Mobile browsers and Safari are not supported for WebUSB/WebSerial updates. See this guide.
Check that all cables are securely connected and that your telescope is powered up and switched on. If the issue continues, restart the telescope and reconnect the device. Also check the power switch is in the correct position if you are not using handset battery power.
